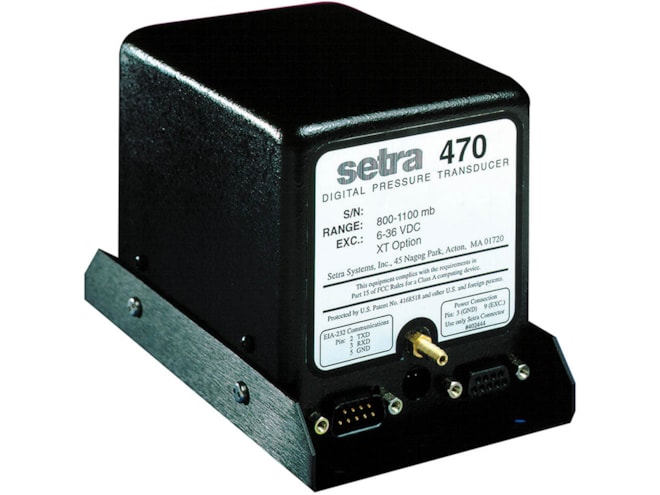

Setra 470 Digital Barometric / Medium Pressure Transducer

• ±0.02% full scale accuracy
• Bidirectional RS-232 digital communications I/O port
• Engineering unit conversions for pressure and altitude
• Temperature range: 32 to 110°F (0 to 45°C)
• Digital altimeter setting indicator (DASI)
• Corrected altimeter mode
• Programmable non-linear functions
• Meets CE conformance standards

The Setra 470 Digital Barometric / Medium Pressure Transducer offers extremely high accuracy and unmatched stability in a digital output
configuration. Environmental monitoring and test & measurement systems around the world rely on Setra’s experience in
barometric pressure measurement instrumentation, as well as high accuracy measurements of higher pressures. Both models
utilize Setra’s unique SETRACERAM™ sensor, which is combined with advanced microprocessor based circuitry and sophisticated
firmware to provide system accuracy to better than ± 0.02% full scale.

The 470 is intended for applications which do not require local display of pressure or key pad access to commands. The
470’s solid stability, reliability and versatility make it the first choice for weather observation systems worldwide. Both
units are programmable for continuous, interval or on demand printing at an adjustable (300-9600) baud rate.

Applications include:

• Automatic weather reporting systems
• Pressure transfer standard
• Altimeter calibration recertification
• Lab or production process monitoring
• Altitude chambers
