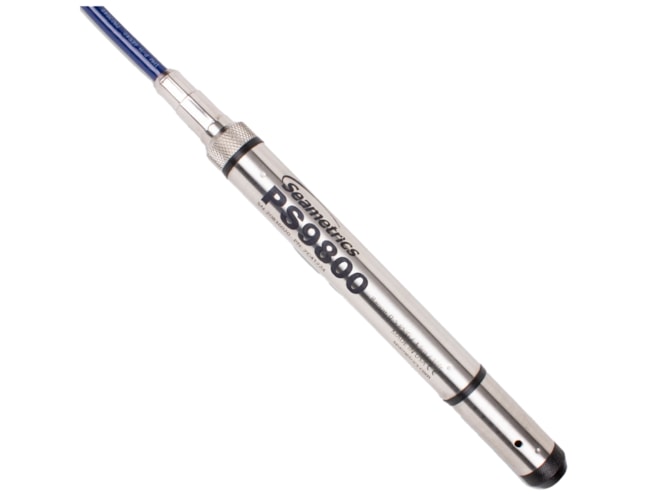

Seametrics PS9800 Analog Pressure Sensor

• Optional temperature channel
• Industry standard, 2-wire, 4-20 mA configuration
• Absolute or gauge
• ± 0.06% FSO typical accuracy
• Operates on low power
• 316 stainless steel, fluoropolymer, PTFE construction (titanium option available)
• Available with a variety of cable options—polyethylene, polyurethane, or FEP
• 1/4 NPT end cone adapter option
• Narrow 0.75″ diameter, 8″ length

The Seametrics PS9800 analog pressure sensor measures pressure and can be configured to measure temperature. It is thermally compensated for volatile conditions – ideal where water temperatures vary, such as in streams or in industrial tank applications. It includes a reverse polarity protection as well as designed with built-in transient protection. Optional lighting protection is available. This sensor is calibrated with patented calibration procedures and NIST traceable equipment.

Some suggestion applications with this sensor include:

• Pump and slug tests
• River, stream and reservoir gauging
• Storm-water runoff monitoring
• Wetland monitoring
• Well, tank and tidal levels
• Flow monitoring
• Water resource management
• Landfill leachate levels
• Control applications
