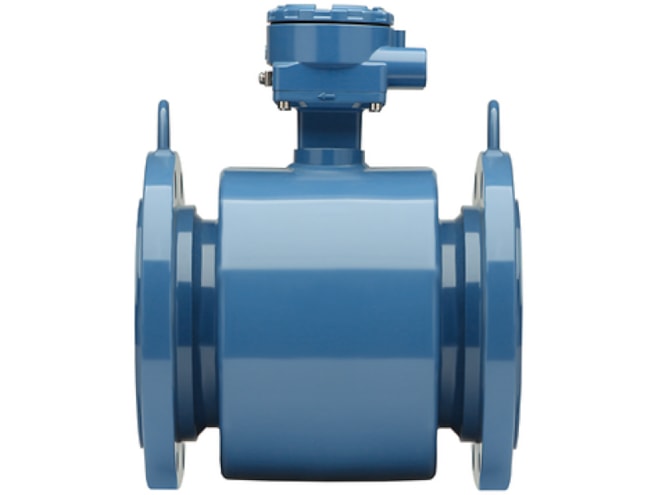

Rosemount MS Magnetic Flow Meter Sensor

• Flanged process connections
• 3in (80mm) to 24in (600mm) sizes available
  • Additional sizes available upon request
• Designed for conductive liquids and slurries
• Reduce sensor inventory with a dual calibration option
• All-welded sensor housing
• Removable and replaceable terminal block
• Standard, reference, bullet-nose, flat electrodes available

The Rosemount MS Magnetic Flow Meter Sensor is a robust solution for difficult to measure applications such as sand, high solid content fluids, long pulp fibers, or installations that generate excessive process noise. Designed with these difficult to measure applications in mind, the MS Slurry Sensor overcomes common flow signal challenges to deliver a stable yet responsive flow output.
