MadgeTech pHTemp2000 pH & Temperature Data Logger

• -40 to 230°F (-40 to 110°C)temp range
  • 0.01°C resolution
  • ±0.15°C @ 25°C accuracy
• Removable screw terminal; 2,3, or 4-wire interface temp input
• Female BNC pH/ORP/ISE input
• -2.00 to 16.00pH range
  • ±0.01pH accuracy
• 131,071 data points/channel
• Includes wall mounted 120VAC/9VDC power adapter

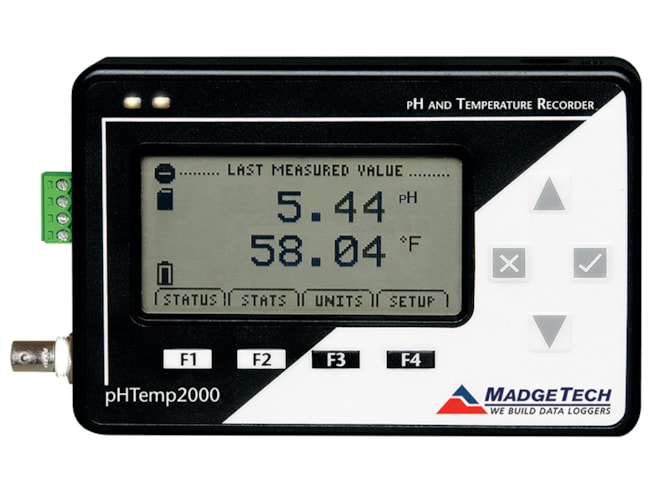

The Madgetech pHTemp2000 is a battery powered, stand alone pH and temperature logger with an LCD display. This
all-in-one compact, portable, easy to use device will measure and record up to 131,071 readings
per channel. The MadgeTech pHTemp2000 will directly connect to many commonly used pH, ORP and ISE electrodes
through a female BNC connector mounted on its side. Temperature is measured by directly
connecting an RTD to the pHTemp2000. Temperature compensation is automatically done internally
to the MadgeTech pHTemp2000.

The storage medium for the MadgeTech pHTemp2000 is non-volatile solid state memory, providing maximum data security
even if the battery becomes discharged. The MadgeTech pHTemp2000 can be started and stopped directly from your computer.
The MadgeTech pHTemp2000 makes data retrieval quick and easy. Simply plug it into an empty com port and the
user-friendly software does the rest.

Madgetech data logger software.

Applications for the MadgeTech pHTemp2000 data logger

• Surface and ground water quality monitoring
• Environmental and wetlands monitoring
• Industrial influent and effluent
• Water districts and municipal water systems
• Process water quality
• Recreation and park management
• Pulp and paper industry
• Wastewater monitoring
