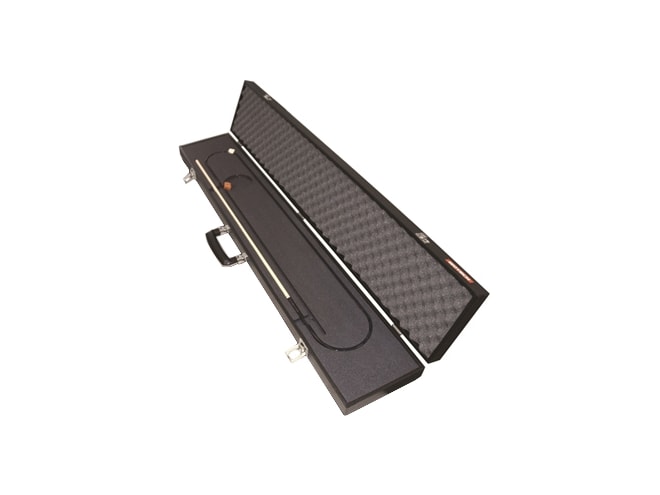

The Isotech Model 1600 Thermocouple is comprised of a 7mm x 300mm or 600mm gas tight 99.7% recrystallized
alumina sheath, inside which is a 2.5mm diameter twin-bore tube holding the thermocouple. The covered noble
metal thermocouple wire connects the measuring sheath to the reference sheath, which is a 4.5mm x 150mm
stainless steel sheath suitable for referencing in a 0°C reference system. Two thermoelectrically free
multistrand copper wires (teflon-coated) connect the thermocouple to the voltage measuring device.
