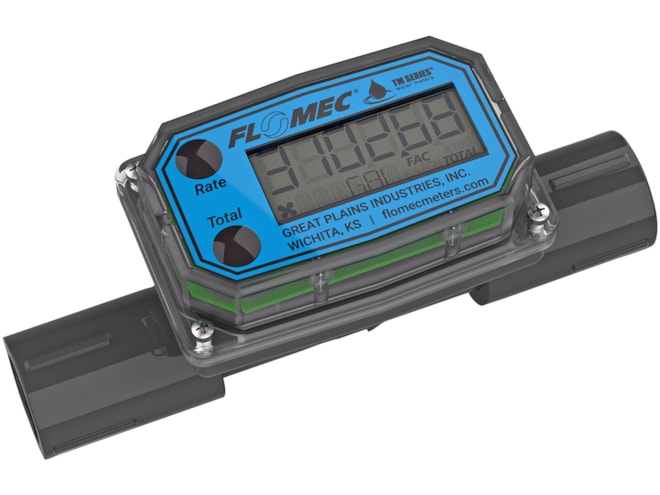

Flomec GPI TM Series Water Meter with Q9 Display

• 1 to 600 gpm (3.8 to 2271 lpm)
• ±3% accuracy
• 225psi

  150psi (BSP)

  135psi (DIN)
• 32 to 140°F (0 to 60°C)
• 0.90in (23mm) low-profile electronics
• 1/2 to 4in turbine sizes available
• CE approval

  IP65

  RoHS 2011/65/EU

  NSF certified (3 and 4in only)

GPI TM Series Water Meters indicate batch, cumulative totals, and rate of flow measured in gallons, litres or cubic feet. They are easy to install with Spigot, NPT, BSP, 150# ANSI flange, or DIN flange fittings. The alkaline battery lasts for two years, and the non-volatile totals mean amounts are retained when batteries are replaced or power is lost. TM Series meters are available with either a computer for local electronic display, or one of three versions of output modules to provide a digital signal to customer interfacing equipment.

GPI TM Series Water Meter Applications

• OEM water treatment equipment / skids
• Water-based cooling systems
• Sub-metering of facility water usage
• Chemical feed systems
• Wastewater treatment equipment
• Monitoring clean fluids
• Irrigation
• Cooling towers
• Batching
• Blending
• Plant process water
