E+H Tankvision Multi Scan NXA83

• Provides data to host systems via Modbus and/or OPC
• Step-by-step site upgrade
• Higher system availability
• Temp range: 32 to 131°F (0 to 55°C)
• Output: OPC DA; Modbus RS485; Modbus Ethernet
• User access through the entire Network
• Precise inventory
• Simplified site approval procedures

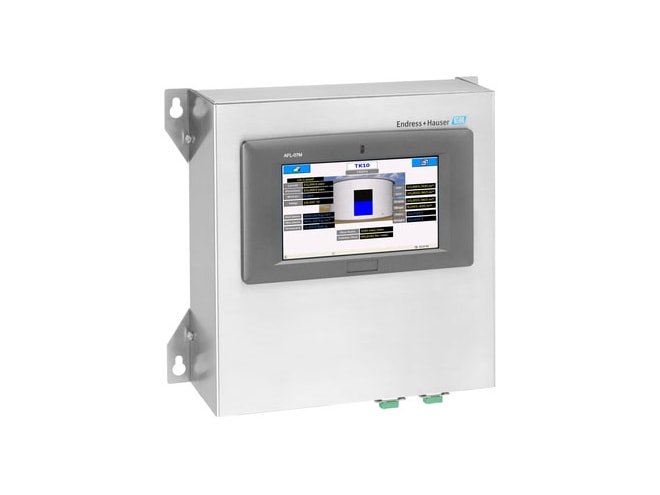

The E+H Tankvision Multi Scan NXA83 scans parameters from tank gauges and performs tank calculations
as one part of Tankvision. For a step by step site upgrade, the Multi Scan allows legacy protocol
management as well as gradual upgrades for more flexibility. Tankvision is based on a distributed
architecture on a local area network (LAN). Due to its modular structure it is ideally suited for
medium size tank farms with only a few tanks, but also for large refineries with hundreds of tanks.
