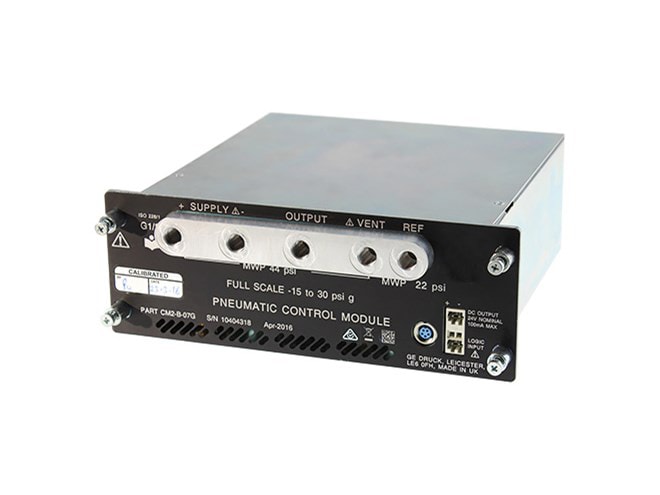

Druck PACE5000 / PACE6000 Control Modules

• Accurate to 0.01%
• Control stability from 0.005 to 0.001% FS
• 0.35 to 3000 psi
• Selectable engineering units (bar, psi, kPa)

These Druck control modules are compatible with the PACE5000 and PACE6000 Modular Pressure Controllers. The modular design allows users to simply plug in the modules for simple and immediate use. Having a range of these modules increases the versatility of the PACE series.

Features Include:

• Interchangeable robust control module that is easily installed into a PACE chassis
• Calibration data stored in the control module (only the CM needs to be sent away for re-calibration)
• High speed pressure control
• Wide choice of pressure ranges
• Choice of standard, high or premium pressure measurement precision
• Barometric reference available to enable pseudo gauge/absolute indication & control
• Aeronautical version
