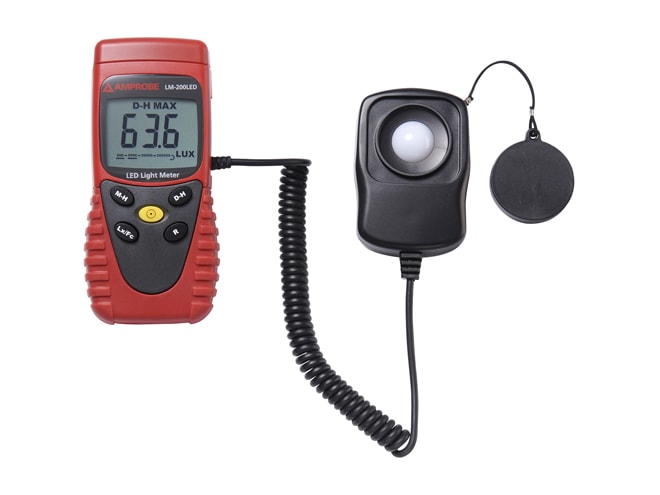

Amprobe LM-200LED Light Meter

• Lux or foot-candle user selectable measurement units
• Measuring range to 200,000 lux or 20,000 foot candles
• Built-in memory with 99 records storage
• Data hold to freeze reading on the digital display
• MAX recording to capture highest light measurement
• Measuring lights source include all visible ranges
• Spectral response close to CIE luminous spectral efficiency
• Angled light cosine correction
• Extended length of wire for light sensor approximately 5ft
• Large, 3-1/2 digit display
• JISC1609:1993 & CNS 5119 general A class specifications

The Amprobe LM-200LED light meter is a professional tester specifically designed
to accurately measure light output from LED light sources. With lux or foot-candle
user selectable units, the LM-200LED measures light with up to ±3% accuracy. The
measurement range spans from 20 to 20,000 foot-candles or 200,000 lux. While measuring
all visible ranges of the light source, this Amprobe light meter also features
angled light cosine correction.

The Amprobe LM-200LED light meter uses a silicon photodiode and filter to ensure accurate measurements.
Results are clearly displayed on a 2000-count, 3-1/2 digit LCD display. Other features of the LM-200LED
include built-in memory with storage for up to 99 readings, data hold to freeze the
reading on the digital display, and max recording to capture the highest light
measurement.

The Amprobe LM-200LED light meter’s light sensor wire extends up to approximately 5 feet
(1.5 m) and measurements are taken according to JISC1609:1993 and CNS 5119 general A class
specifications. Additionally, the LM-200LED’s spectral response is close to CIE luminous
spectral efficiency.
